Basketball Winch Up

Basketball Winch Up System

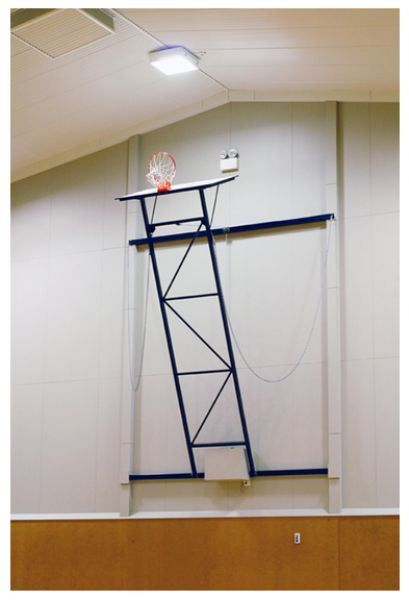

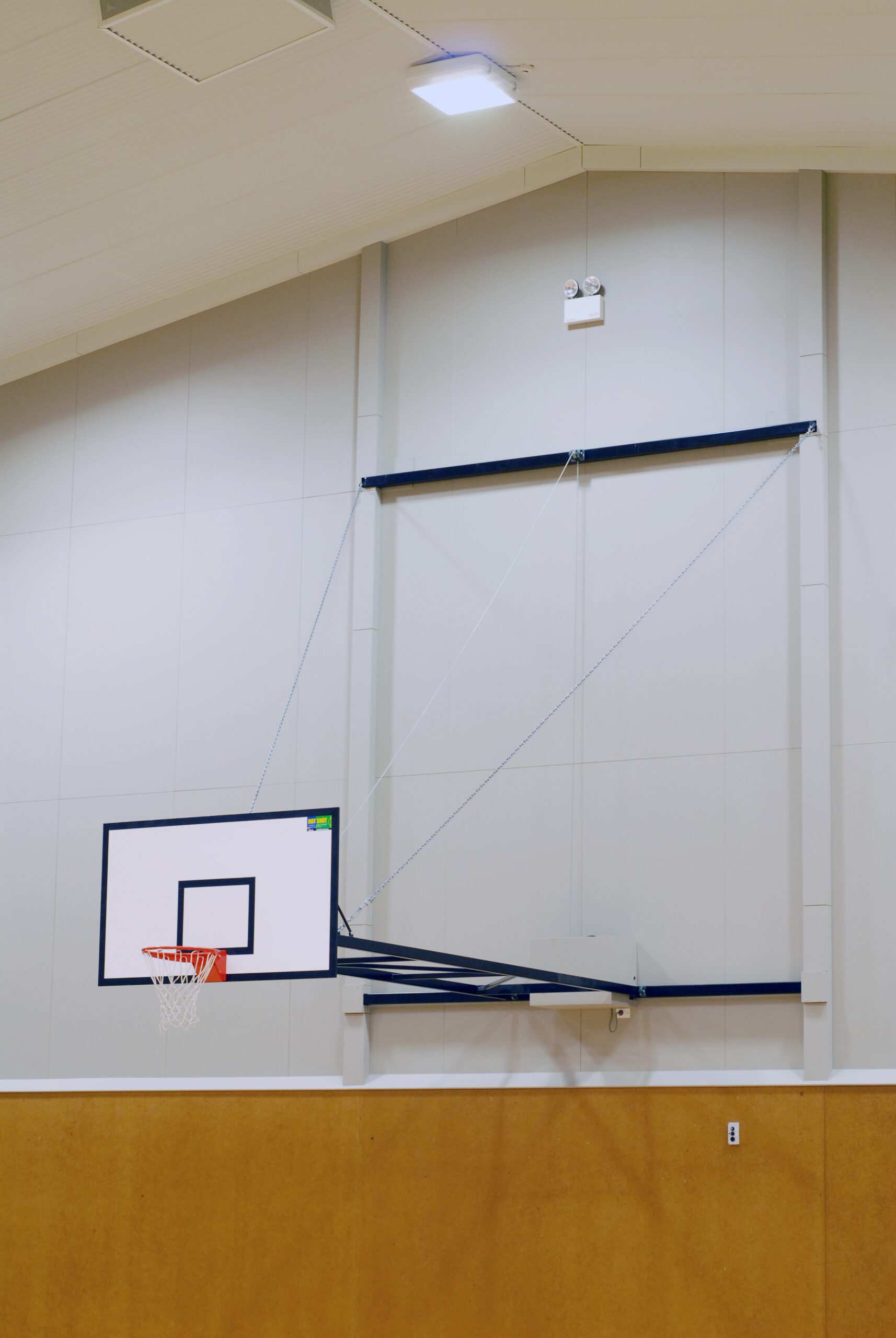

The Winch Up Basketball unit is a New Zealand made cantilever basketball system that can be mounted on a wall and is winched upwards when not in use. It can be mounted on concrete, block or portal frame walls.

Additional cross beams have to be installed between portal frames when the unit is to be installed on a portal frame wall. The requirement for hanging the unit on the wall is that the wall is constructed to take the load of the unit. We recommend contacting a structural engineer about any specific mounting requirements.

The winch is supplied by a 1 phase 230V power point that should be mounted alongside the base, next to the winch box. The supplied switch should be mounted at an accessible location on the wall below the unit.

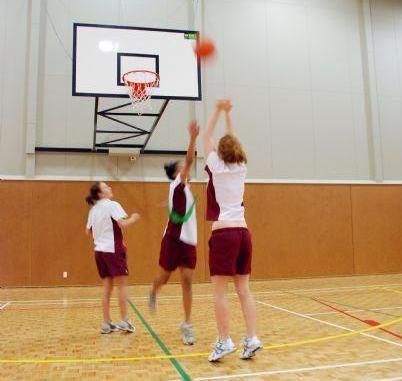

HotShot was asked by Woodford House school to design a high specification basketball system for their completed new gym, that required a 6.0 reach wall mount with key. They requested it needed to stable and safe to operate, and did not look like a mass of steel mounted to the wall. The school is very pleased with the result.

For safety reasons this unit is electrically winch operated.

Made to order, price excludes shipping. Contact us today for a free freight quote.


Information Sheet


Key Features

  • clean appearance, single axis wall pivot support
  • free fall safety cables
  • key lock wall mount operating switch
  • automatic stops up and down
  • fixed hoop heavy duty
  • Hotshot alloy extrusion suspended beams
  • backboard options available

Optional Extras


Additional information


BB WU F – Fixed Backboard, BB WU A – Adjustable Backboard
