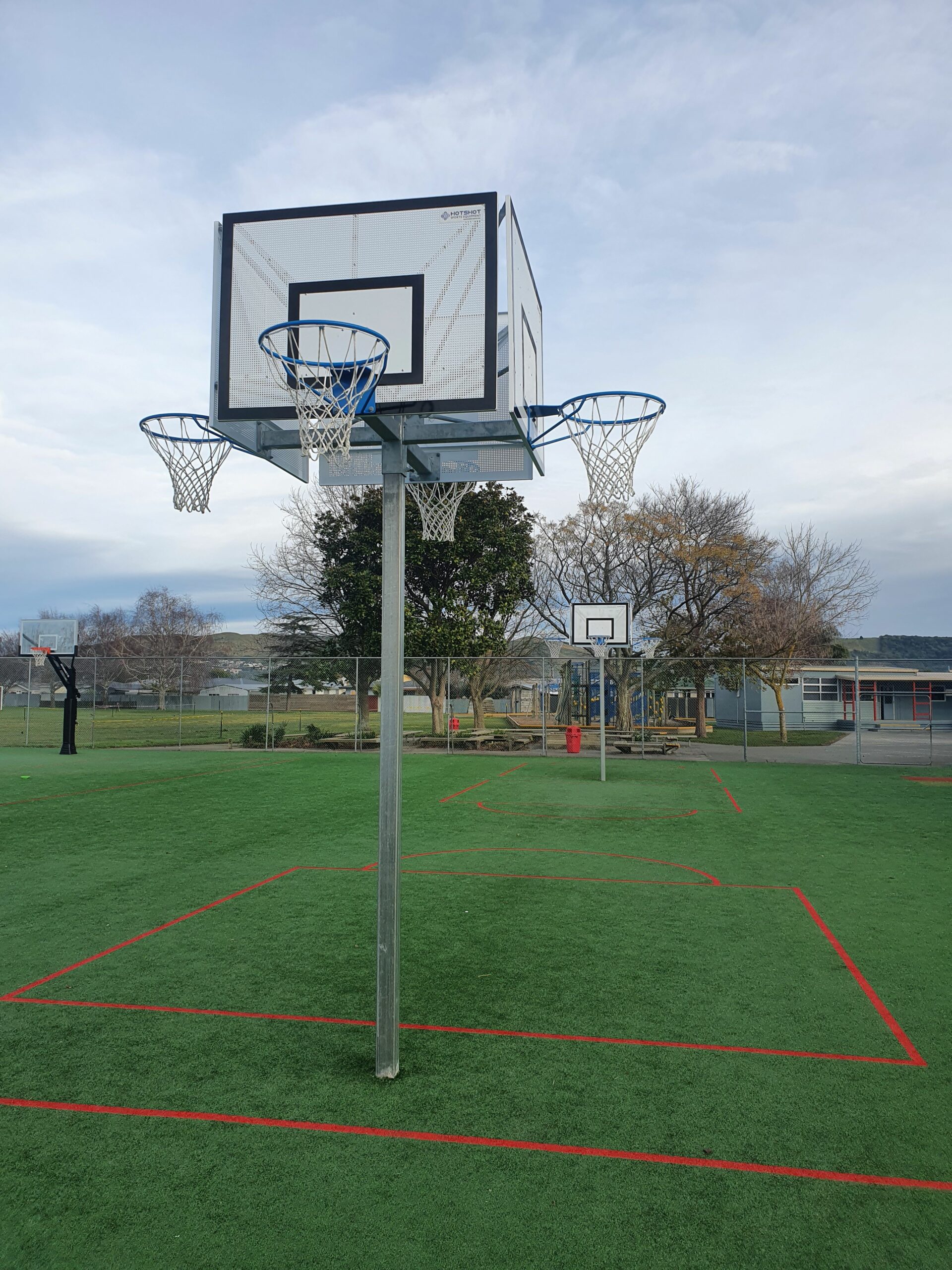

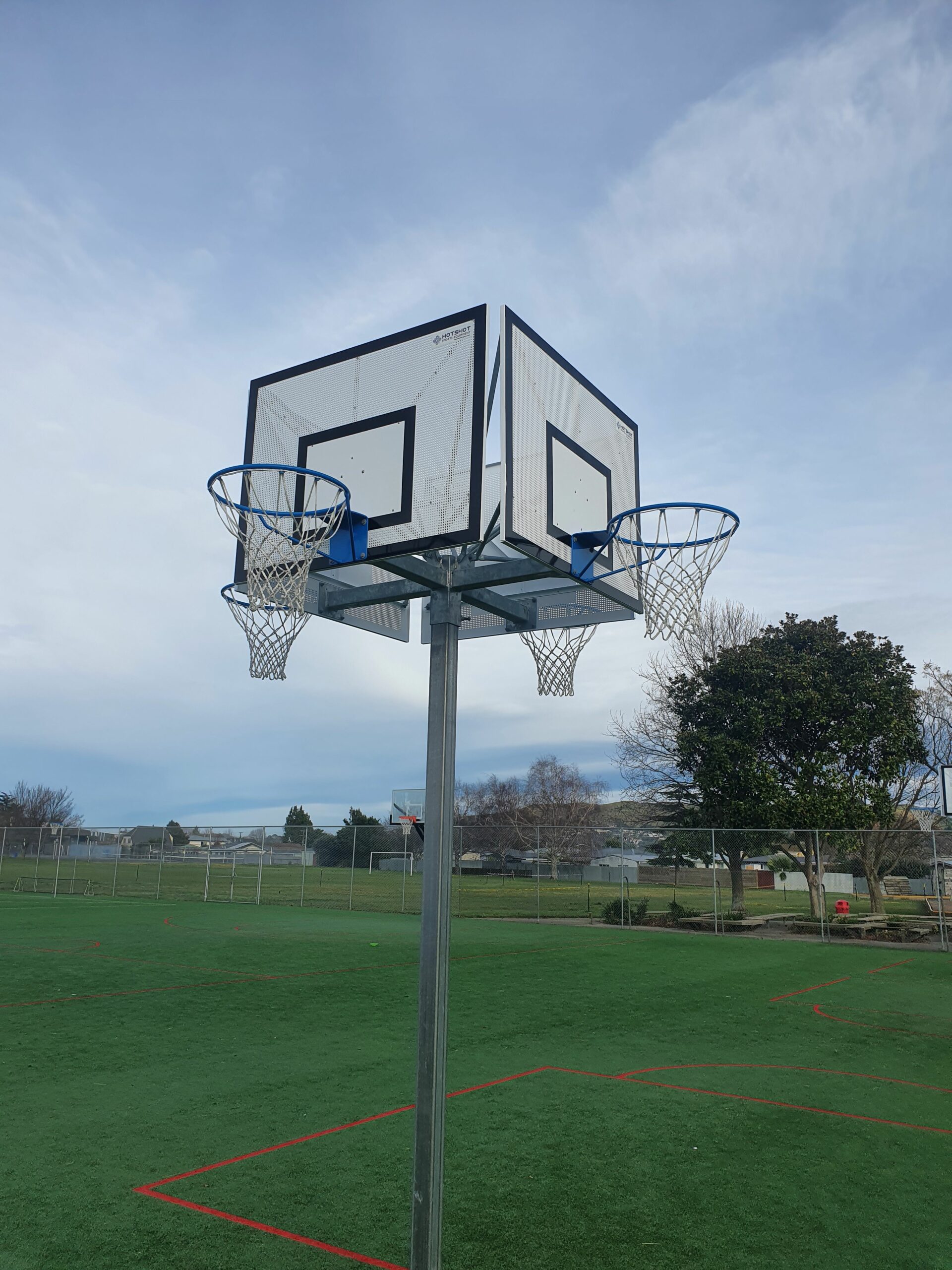

Basketball Quad Tower

With 4 hoops and backboards on the same central pole allows more than one group to simultaneously shoot the ball.

The diagram illustrates a top-down view of the concept.

This heavy-duty tower system is fabricated from 90mm x 90mm x 4mm square steel section that has been hot-dip galvanised to withstand all weather conditions.  This modular tower system makes it easy to assemble and extremely strong.  The high-quality backboard is supported by heavy-duty supports to reinforce the system.

We believe this tower system will stand up to the toughest treatment.

This unit comes standard with 600mm outreach from the backboard to the pole (on each side) but as with our single units, you can have the option of a 1200mm outreach and with a stainless steel or wood backboard.

Price includes GST and excludes shipping. Contact us today for a freight quote.


Key Features

You have a choice from three backboards – Stainless Steel – Steel – Wood

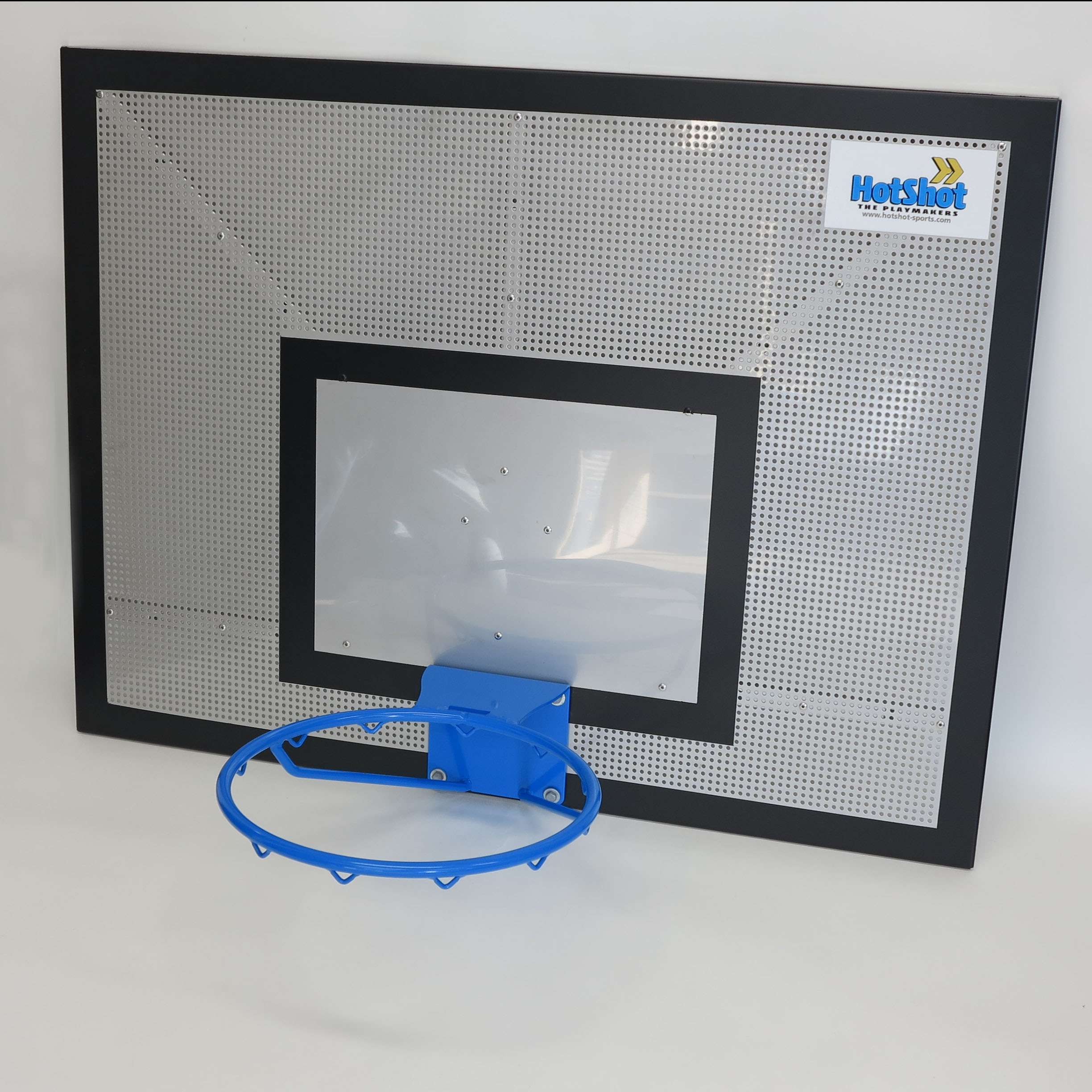

Stainless Steel Backboard Option – 1.6mm perforated 1200 x 900

Steel Backboard Option – 1.6mm perforated 1200 x 900 powder-coated finish

Wood Backboard Option – 17mm 1200 x 900

  • heavy duty backboard supports
  • top with a 600mm outreach from backboard to pole on each side
  • 90mm x 90mm x 4mm thick RHS galvanised pole, powder coating optional extra
  • ring bolts directly onto the tower relieving any stress on the backboard
  • fixed powder coated hoop with heavy-duty support plate and braces
  • you can also upgrade the hoop to a BB RE Removeable hoop & Handle


Assembly Instructions


Basketball Tower Flyer

Additional information


600 Quid Tower Wooden Board, 600 Quid Tower Steel Board, Optional Extra – Tower Removable Hoop Upgrade, Optional Extra – Tower Removable Hoop Handle, 600 Quid Tower Stainless Steel Board
