Electric Winch Tork

Key Features

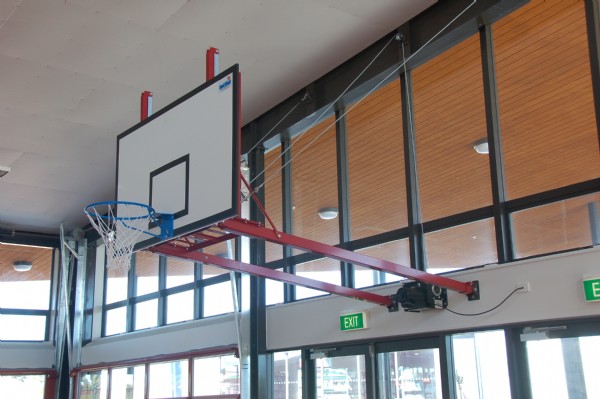

• Max Safe Working Load – Designed to lift a vertical weight of 453kg a backstop assembly weighing 820kg
• Load Type – Vertical Lifting, pulling on a slope or pulling horizontally
• Rope Type – 1/4″ / 6 mm 7 x 19 aircraft cable (Rope not supplied with winch)
• Rope Travel – 25 feet / 7.5 metres on one layer – A second layer for 45 feet / 13.5 metres total may be wound on if required
• Rope Speed – 12 feet per minute / 3.5 metres per minute
• Electrical Characteristics – 120 Volts, 60 Cycles

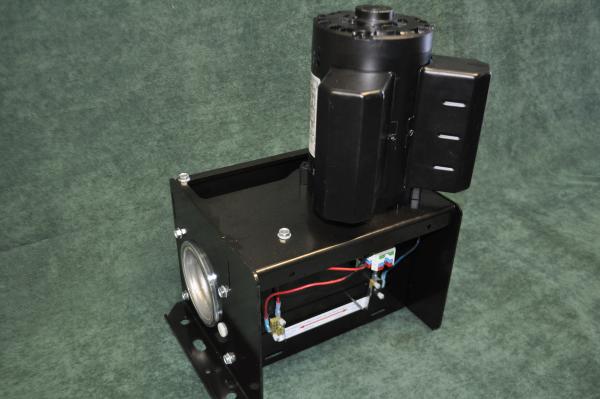

• Motor – 1 HP / .75 KW
• Motor Type – Instant reverse, low maximum current draw design, thermally protected
• Full Load Amperage – 13 amps
• Duty Cycles – Standard 10 minutes on , 20 minutes off
• Gear Reduction – Proprietary composite self lubricating gearing with no oil bath

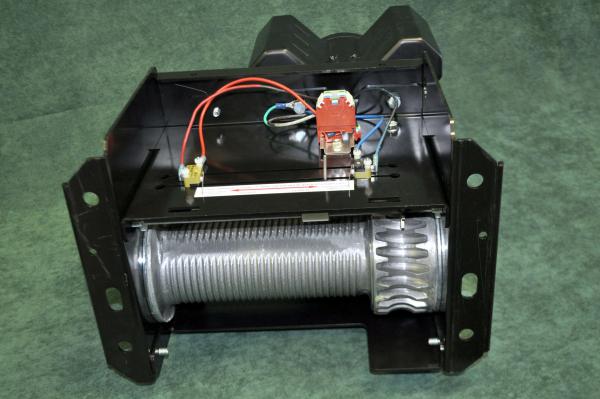

• Rope Drum – Grooved for accurate winding.  Supported in large diameter ball bearing and positive, through-the-drum type anchoring
• Braking – Double, self-locking worm gearing plus passive uni-directional brake
• Pressure Roller – Constant pressure type with torsion spring mounting
• Limited Switches – Heavy duty upper and lower switches, gear for high accuracy Maximum travel 45 feet / 13.8 metres
• Frame Construction – Precision interlocking steel frame for high rigidity and precise alignment.  Semi enclosed for safety.  E-coated for corrosion resistance
• Weight – 64 lbs

WARNING

• For indoor use only
• Not to be used for lifting people
• Not to be used for lifting things over people without a safety locking device or an automatic fall arrester system in place
